Window Framework for UI Toolkit v2.0.x
GWG.WindowFramework.Demo.EscapeMenuWindow Class Reference

EscapeMenuWindow is a class that represents a fullscreen escape menu window. It provides options for resuming the game, accessing settings, and quitting the application. Hides header/footer and requests fullscreen. It does not set Locked=true or disable AllowMove/AllowResize in this constructor. Resume and Settings call ordinary CloseWindow with AllowClose=true; this sample is not a gameplay pause/input-blocking service. Quit explicitly stops Editor Play Mode or calls Application.Quit in a player. More...

Inheritance diagram for GWG.WindowFramework.Demo.EscapeMenuWindow:

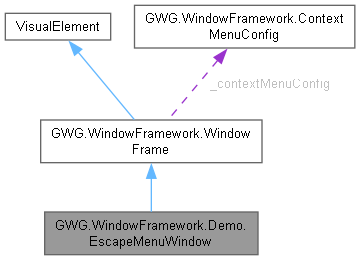

Collaboration diagram for GWG.WindowFramework.Demo.EscapeMenuWindow:

Public Member Functions

 EscapeMenuWindow ()
 Constructor for the EscapeMenuWindow. Initializes the window properties and builds the menu content.
Public Member Functions inherited from GWG.WindowFramework.WindowFrame
 WindowFrame ()
 Represents a custom UI element serving as a container for window-based content, including a header, content, and footer, providing event handling and theme adaptability for Unity's UI Toolkit.
void CloseWindow (bool forceAll=false)
 Closes the window if allowed.
void DockTab (WindowFrame incoming)
 Docks an incoming standalone WindowFrame into this window as a nested tab.
void DockTo (WindowDockState targetState)
 Applies the specified programmatic dock geometry, preserving initial floating bounds.
void ExitFullscreenToCursor (Vector2 cursorPos)
 Exits fullscreen mode and pre-positions the restored floating window centered horizontally under the cursor.
void Hide ()
 Hides the window while keeping it in memory.
void SetOpeningPosition ()
 Sets the opening position of the window based on the selected position. Options include: TopLeft, Top, TopRight, Left, Center, Right, BottomLeft, Bottom, BottomRight.
void Show ()
 Shows the window by setting its display style to flex and opacity to 1.0f.
void SwitchToTab (int index)
 Switches the active view to display the specified nested tab's content.
void Undock (Vector2? cursorPos=null)
 Undocks the window frame, restoring its pre-dock floating size and positioning.
WindowFrame UndockTab (int index, Vector2? mousePos=null)
 Undocks a nested tab back into an independent standalone WindowFrame.

Additional Inherited Members

Properties inherited from GWG.WindowFramework.WindowFrame
bool Active [get, set]
 Gets or sets whether the window is active.
int ActiveTabIndex [get]
 Gets the current tab-selection index; interpret against the current live tab list.
bool AllowClose = true [get, set]
 Gets or sets whether the window can be closed.
bool AllowFullscreen = true [get, set]
 Determines whether the window frame can toggle to fullscreen mode.
bool AllowLock [get, set]
 Gets or sets whether the window can be locked.
bool AllowMove = true [get, set]
 Gets or sets whether the window can be moved.
bool AllowMultipleInstances = true [get, set]
 Gets or sets whether multiple instances of this window are allowed.
bool AllowResize [get, set]
 Gets or sets whether the window can be resized.
bool AllowTabDocking = true [get, set]
 Gets or sets whether this window can participate in tabbed window nesting and docking.
VisualElement Content [get, set]
 Gets or sets the content area of the window.
override VisualElement contentContainer [get]
 Overrides the contentContainer to return the window's content area instead of the root.
ContextMenuConfig ContextMenuConfig [get, set]
 Gets or sets the context menu configuration for this window.
float DefaultHeight [get, set]
float DefaultWidth [get, set]
WindowDockState DockState [get, set]
 Gets/sets docking metadata; assignment alone does not reposition or resize this window.
WindowFrameDragger Dragger [get]
 Gets the installed header dragger, which can be null before scheduled setup.
VisualElement FooterToolbar [get, set]
 Gets or sets the toolbar in the footer area of the window.
bool Fullscreen [get, set]
 Gets or sets whether the window is in fullscreen mode.
bool Locked [get, set]
 Gets or sets whether the window is locked.
bool LockedFullscreen [get, set]
 Determines whether the fullscreen mode of the window is locked, preventing the user from toggling fullscreen on or off.
bool LockedToStartPosition [get, set]
 Gets or sets whether the window is locked to its start position.
float MinHeight [get, set]
 Gets or sets the minimum height of the window.
float MinWidth [get, set]
 Gets or sets the minimum width of the window.
IReadOnlyList< WindowTabEntry > NestedTabs [get]
 Gets the live nested-tab list through a read-only interface, not an independent snapshot.
string OptionsMenuTooltip [get, set]
 Gets or sets the tooltip for the options menu button.
string ParentObjectId [get, set]
 Gets or sets the ID of the parent object associated with the window.
Rect PreDockRect [get, set]
 Gets/sets floating restore bounds in parent layout coordinates.
string ResizeAreaTooltip [get, set]
 Gets or sets the tooltip for the resize area.
bool ShowFooter [get, set]
 Gets or sets whether the footer is visible.
bool ShowHeader [get, set]
 Gets or sets whether the header is visible.
WindowFramePosition StartPosition [get, set]
 Gets or sets the position of the window frame.
List< StyleSheet > StyleSheet [get, set]
 Gets or sets the stylesheet applied to the window.
string Title [get, set]
 Gets or sets the title of the window.
string WindowId [get, set]
 Gets or sets the unique ID of the window.
bool WindowMemoryEnabled = false [get, set]
 Gets or sets whether the window memory is enabled.
Events inherited from GWG.WindowFramework.WindowFrame
static Action< WindowFrame > OnWindowFrameAdded
 Event triggered when a new WindowFrame is added to the panel.
static Action< WindowFrame > OnWindowFrameRemoved
 Event triggered when a WindowFrame is removed from the panel.

Detailed Description

EscapeMenuWindow is a class that represents a fullscreen escape menu window. It provides options for resuming the game, accessing settings, and quitting the application. Hides header/footer and requests fullscreen. It does not set Locked=true or disable AllowMove/AllowResize in this constructor. Resume and Settings call ordinary CloseWindow with AllowClose=true; this sample is not a gameplay pause/input-blocking service. Quit explicitly stops Editor Play Mode or calls Application.Quit in a player.

Constructor & Destructor Documentation

◆ EscapeMenuWindow()

GWG.WindowFramework.Demo.EscapeMenuWindow.EscapeMenuWindow ( )
inline

Constructor for the EscapeMenuWindow. Initializes the window properties and builds the menu content.

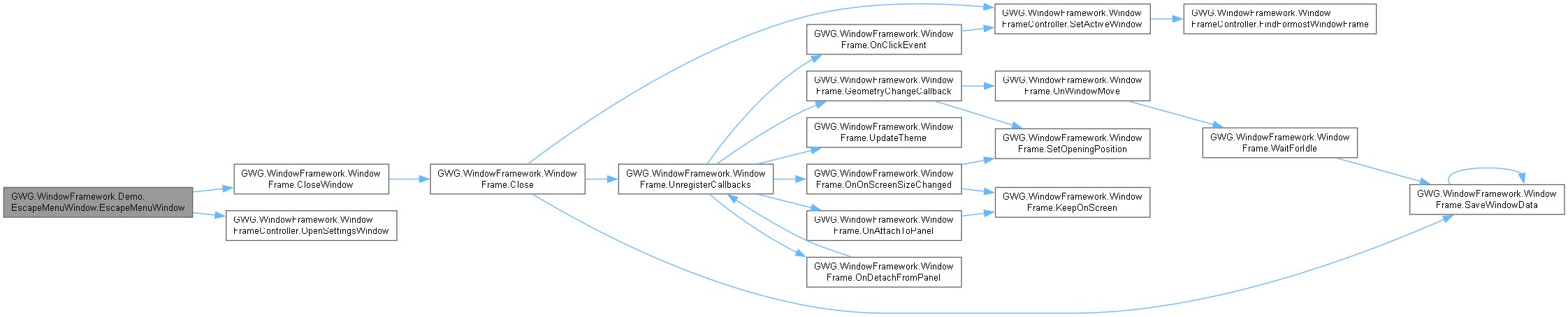

Here is the call graph for this function:
Here is the caller graph for this function:
