Window Framework for UI Toolkit v2.0.x
GWG.WindowFramework.Demo.UXMLBasedDemoWindow Class Reference

Demo help/content window instantiating VisualTreeAsset pages from DemoPageData. More...

Inheritance diagram for GWG.WindowFramework.Demo.UXMLBasedDemoWindow:

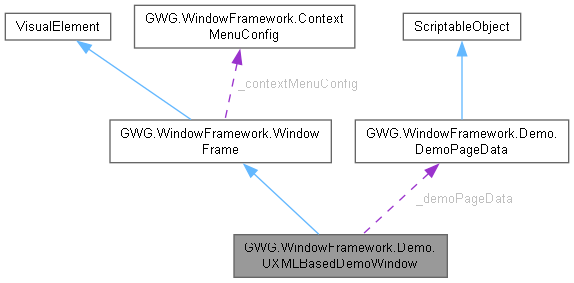

Collaboration diagram for GWG.WindowFramework.Demo.UXMLBasedDemoWindow:

Public Member Functions

 UXMLBasedDemoWindow ()
 Represents a custom help window derived from the WindowFrame class. Used to create and display a specialized UXML-based help interface.
Public Member Functions inherited from GWG.WindowFramework.WindowFrame
 WindowFrame ()
 Represents a custom UI element serving as a container for window-based content, including a header, content, and footer, providing event handling and theme adaptability for Unity's UI Toolkit.
void CloseWindow (bool forceAll=false)
 Closes the window if allowed.
void DockTab (WindowFrame incoming)
 Docks an incoming standalone WindowFrame into this window as a nested tab.
void DockTo (WindowDockState targetState)
 Applies the specified programmatic dock geometry, preserving initial floating bounds.
void ExitFullscreenToCursor (Vector2 cursorPos)
 Exits fullscreen mode and pre-positions the restored floating window centered horizontally under the cursor.
void Hide ()
 Hides the window while keeping it in memory.
void SetOpeningPosition ()
 Sets the opening position of the window based on the selected position. Options include: TopLeft, Top, TopRight, Left, Center, Right, BottomLeft, Bottom, BottomRight.
void Show ()
 Shows the window by setting its display style to flex and opacity to 1.0f.
void SwitchToTab (int index)
 Switches the active view to display the specified nested tab's content.
void Undock (Vector2? cursorPos=null)
 Undocks the window frame, restoring its pre-dock floating size and positioning.
WindowFrame UndockTab (int index, Vector2? mousePos=null)
 Undocks a nested tab back into an independent standalone WindowFrame.

Properties

DemoPageData DemoPageData [get, set]
 Gets/sets page configuration; nonnull assignment builds the list and loads its first page.
int SelectedPage [get, set]
 Gets selected menu index; setting it recreates the corresponding configured page.
Properties inherited from GWG.WindowFramework.WindowFrame
bool Active [get, set]
 Gets or sets whether the window is active.
int ActiveTabIndex [get]
 Gets the current tab-selection index; interpret against the current live tab list.
bool AllowClose = true [get, set]
 Gets or sets whether the window can be closed.
bool AllowFullscreen = true [get, set]
 Determines whether the window frame can toggle to fullscreen mode.
bool AllowLock [get, set]
 Gets or sets whether the window can be locked.
bool AllowMove = true [get, set]
 Gets or sets whether the window can be moved.
bool AllowMultipleInstances = true [get, set]
 Gets or sets whether multiple instances of this window are allowed.
bool AllowResize [get, set]
 Gets or sets whether the window can be resized.
bool AllowTabDocking = true [get, set]
 Gets or sets whether this window can participate in tabbed window nesting and docking.
VisualElement Content [get, set]
 Gets or sets the content area of the window.
override VisualElement contentContainer [get]
 Overrides the contentContainer to return the window's content area instead of the root.
ContextMenuConfig ContextMenuConfig [get, set]
 Gets or sets the context menu configuration for this window.
float DefaultHeight [get, set]
float DefaultWidth [get, set]
WindowDockState DockState [get, set]
 Gets/sets docking metadata; assignment alone does not reposition or resize this window.
WindowFrameDragger Dragger [get]
 Gets the installed header dragger, which can be null before scheduled setup.
VisualElement FooterToolbar [get, set]
 Gets or sets the toolbar in the footer area of the window.
bool Fullscreen [get, set]
 Gets or sets whether the window is in fullscreen mode.
bool Locked [get, set]
 Gets or sets whether the window is locked.
bool LockedFullscreen [get, set]
 Determines whether the fullscreen mode of the window is locked, preventing the user from toggling fullscreen on or off.
bool LockedToStartPosition [get, set]
 Gets or sets whether the window is locked to its start position.
float MinHeight [get, set]
 Gets or sets the minimum height of the window.
float MinWidth [get, set]
 Gets or sets the minimum width of the window.
IReadOnlyList< WindowTabEntry > NestedTabs [get]
 Gets the live nested-tab list through a read-only interface, not an independent snapshot.
string OptionsMenuTooltip [get, set]
 Gets or sets the tooltip for the options menu button.
string ParentObjectId [get, set]
 Gets or sets the ID of the parent object associated with the window.
Rect PreDockRect [get, set]
 Gets/sets floating restore bounds in parent layout coordinates.
string ResizeAreaTooltip [get, set]
 Gets or sets the tooltip for the resize area.
bool ShowFooter [get, set]
 Gets or sets whether the footer is visible.
bool ShowHeader [get, set]
 Gets or sets whether the header is visible.
WindowFramePosition StartPosition [get, set]
 Gets or sets the position of the window frame.
List< StyleSheet > StyleSheet [get, set]
 Gets or sets the stylesheet applied to the window.
string Title [get, set]
 Gets or sets the title of the window.
string WindowId [get, set]
 Gets or sets the unique ID of the window.
bool WindowMemoryEnabled = false [get, set]
 Gets or sets whether the window memory is enabled.

Private Member Functions

void BindModalExamples (VisualElement page)
void BindVisualScriptingDemo (VisualElement page)
VisualElement CreateHelpLine (string label, string link)
VisualElement CreateHelpUI ()
void CreateMenu ()
void FindContextDemos ()
void Initialize ()
void LoadPage (int index)

Private Attributes

DemoPageData _demoPageData
ListView _menu
TwoPaneSplitView _menuSplitView
ScrollView _rightContent
bool pickaxeEquiped = false

Additional Inherited Members

Events inherited from GWG.WindowFramework.WindowFrame
static Action< WindowFrame > OnWindowFrameAdded
 Event triggered when a new WindowFrame is added to the panel.
static Action< WindowFrame > OnWindowFrameRemoved
 Event triggered when a WindowFrame is removed from the panel.

Detailed Description

Demo help/content window instantiating VisualTreeAsset pages from DemoPageData.

The constructor builds its panes; assigning nonnull DemoPageData initializes the page list. This is sample content, not automatic download/localization or purchaser manual data. Page changes recreate content and bind demo controls; external resources remain caller-owned.

Constructor & Destructor Documentation

◆ UXMLBasedDemoWindow()

GWG.WindowFramework.Demo.UXMLBasedDemoWindow.UXMLBasedDemoWindow ( )
inline

Represents a custom help window derived from the WindowFrame class. Used to create and display a specialized UXML-based help interface.

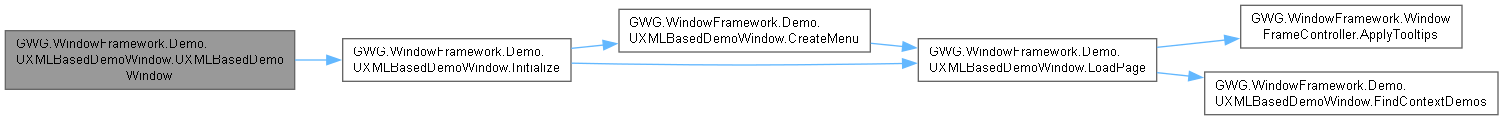

Here is the call graph for this function:
Here is the caller graph for this function:

Member Function Documentation

◆ BindModalExamples()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.BindModalExamples ( VisualElement page)
inlineprivate
Here is the caller graph for this function:

◆ BindVisualScriptingDemo()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.BindVisualScriptingDemo ( VisualElement page)
inlineprivate
Here is the call graph for this function:
Here is the caller graph for this function:

◆ CreateHelpLine()

VisualElement GWG.WindowFramework.Demo.UXMLBasedDemoWindow.CreateHelpLine ( string label,
string link )
inlineprivate
Here is the caller graph for this function:

◆ CreateHelpUI()

VisualElement GWG.WindowFramework.Demo.UXMLBasedDemoWindow.CreateHelpUI ( )
inlineprivate
Here is the call graph for this function:

◆ CreateMenu()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.CreateMenu ( )
inlineprivate

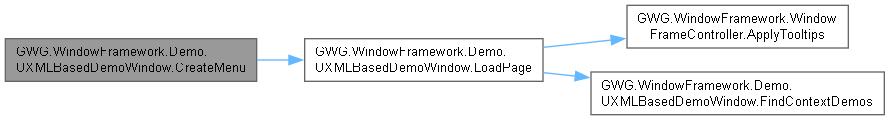

Here is the call graph for this function:
Here is the caller graph for this function:

◆ FindContextDemos()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.FindContextDemos ( )
inlineprivate
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Initialize()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.Initialize ( )
inlineprivate

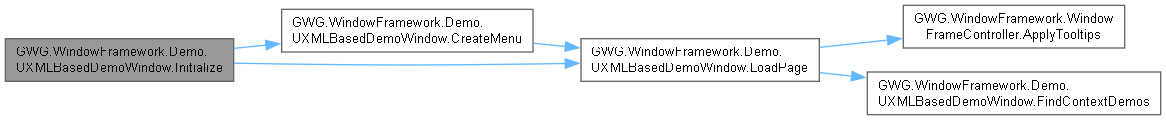

Here is the call graph for this function:
Here is the caller graph for this function:

◆ LoadPage()

void GWG.WindowFramework.Demo.UXMLBasedDemoWindow.LoadPage ( int index)
inlineprivate

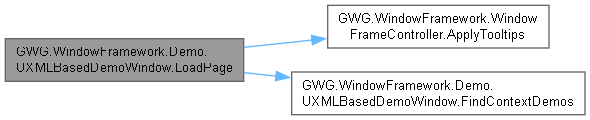

Here is the call graph for this function:
Here is the caller graph for this function:

Field Documentation

◆ _demoPageData

DemoPageData GWG.WindowFramework.Demo.UXMLBasedDemoWindow._demoPageData
private

◆ _menu

ListView GWG.WindowFramework.Demo.UXMLBasedDemoWindow._menu
private

◆ _menuSplitView

TwoPaneSplitView GWG.WindowFramework.Demo.UXMLBasedDemoWindow._menuSplitView
private

◆ _rightContent

ScrollView GWG.WindowFramework.Demo.UXMLBasedDemoWindow._rightContent
private

◆ pickaxeEquiped

bool GWG.WindowFramework.Demo.UXMLBasedDemoWindow.pickaxeEquiped = false
private

Property Documentation

◆ DemoPageData

DemoPageData GWG.WindowFramework.Demo.UXMLBasedDemoWindow.DemoPageData
getset

Gets/sets page configuration; nonnull assignment builds the list and loads its first page.

Null assignment logs an error rather than constructing fallback data. Keep pages and referenced VisualTreeAssets valid. Reassignment recreates page controls and their sample bindings.

◆ SelectedPage

int GWG.WindowFramework.Demo.UXMLBasedDemoWindow.SelectedPage
getset

Gets selected menu index; setting it recreates the corresponding configured page.

Caller must ensure initialized nonnull data and an index within pages.Count. LoadPage does not clamp arbitrary indices; invalid input can throw. It clears existing page content before validating data availability. This is not a safe remote-page loader.
