GWG.WindowFramework.WindowFrame Class Reference

Represents a customizable window frame for UI elements in Unity. Provides functionality for resizing, moving, locking, and saving window state. Includes support for themes, tooltips, and context menus. More...

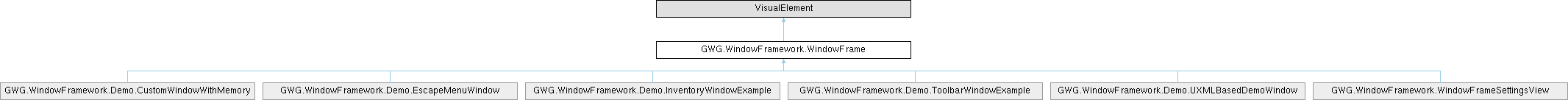

Inheritance diagram for GWG.WindowFramework.WindowFrame:

Public Member Functions
	WindowFrame ()
	Represents a custom UI element serving as a container for window-based content, including a header, content, and footer, providing event handling and theme adaptability for Unity's UI Toolkit.
void	CloseWindow (bool forceAll=false)
	Closes the window if allowed.
void	Hide ()
	Hides the window while keeping it in memory.
void	SetOpeningPosition ()
	Sets the opening position of the window based on the selected position. Options include: TopLeft, Top, TopRight, Left, Center, Right, BottomLeft, Bottom, BottomRight.
void	Show ()
	Shows the window by setting its display style to flex and opacity to 1.0f.

Properties
bool	Active [get, set]
	Gets or sets whether the window is active.
bool	AllowClose = true [get, set]
	Gets or sets whether the window can be closed.
bool	AllowFullscreen = true [get, set]
	Determines whether the window frame can toggle to fullscreen mode.
bool	AllowLock [get, set]
	Gets or sets whether the window can be locked.
bool	AllowMove = true [get, set]
	Gets or sets whether the window can be moved.
bool	AllowMultipleInstances = true [get, set]
	Gets or sets whether multiple instances of this window are allowed.
bool	AllowResize [get, set]
	Gets or sets whether the window can be resized.
VisualElement	Content [get, set]
	Gets or sets the content area of the window.
override VisualElement	contentContainer [get]
	Overrides the contentContainer to return the window's content area instead of the root.
ContextMenuConfig	ContextMenuConfig [get, set]
	Gets or sets the context menu configuration for this window.
float	DefaultHeight = 300 [get, set]
	Gets or sets the default height of the window.
float	DefaultWidth = 300 [get, set]
	Gets or sets the default width of the window.
VisualElement	FooterToolbar [get, set]
	Gets or sets the toolbar in the footer area of the window.
bool	Fullscreen [get, set]
	Gets or sets whether the window is in fullscreen mode.
bool	Locked [get, set]
	Gets or sets whether the window is locked.
bool	LockedFullscreen [get, set]
	Determines whether the fullscreen mode of the window is locked, preventing the user from toggling fullscreen on or off.
bool	LockedToStartPosition [get, set]
	Gets or sets whether the window is locked to its start position.
float	MinHeight [get, set]
	Gets or sets the minimum height of the window.
float	MinWidth [get, set]
	Gets or sets the minimum width of the window.
string	OptionsMenuTooltip [get, set]
	Gets or sets the tooltip for the options menu button.
string	ParentObjectId [get, set]
	Gets or sets the ID of the parent object associated with the window.
string	ResizeAreaTooltip [get, set]
	Gets or sets the tooltip for the resize area.
bool	ShowFooter [get, set]
	Gets or sets whether the footer is visible.
bool	ShowHeader [get, set]
	Gets or sets whether the header is visible.
WindowFramePosition	StartPosition [get, set]
	Gets or sets the position of the window frame.
List< StyleSheet >	StyleSheet [get, set]
	Gets or sets the stylesheet applied to the window.
string	Title [get, set]
	Gets or sets the title of the window.
string	WindowId [get, set]
	Gets or sets the unique ID of the window.
bool	WindowMemoryEnabled = false [get, set]
	Gets or sets whether the window memory is enabled.

Events
static Action< WindowFrame >	OnWindowFrameAdded
	Event triggered when a new WindowFrame is added to the panel.
static Action< WindowFrame >	OnWindowFrameRemoved
	Event triggered when a WindowFrame is removed from the panel.

Private Member Functions
void	Close ()
	Performs complete window closure and cleanup.
ContextMenuConfig	ContextMenuDefaultConfig ()
	Creates the default context menu configuration with standard window operations.
void	CreateLayout ()
	Creates the basic layout structure of the window by adding header, content, and footer.
void	GeometryChangeCallback (GeometryChangedEvent evt)
	Called whenever a change in the window geometry occurs.
bool	HandleMultipleInstanceCheck ()
	Checks if multiple instances are allowed and handles singleton behavior.
void	KeepOnScreen ()
	Ensures the window remains within screen boundaries.
bool	LoadWindowData ()
	Loads previously saved window data and applies it to the current window.
void	OnAttachToPanel (AttachToPanelEvent evt)
	Handles the panel attach event.
void	OnClickEvent (ClickEvent evt)
	Handles click events on the window for activation.
void	OnDetachFromPanel (DetachFromPanelEvent evt)
	Handles the panel detach event for proper cleanup.
void	OnOnScreenSizeChanged (GeometryChangedEvent evt)
	Handles screen size changes by repositioning windows as needed.
void	OnWindowMove ()
	Called when the window is moved, starts a resetable timmer watching for idle and then save the window data.
void	RegisterCallbacks ()
	Registers all necessary event callbacks for window functionality.
void	SaveWindowData ()
	Save window data.
void	SaveWindowData (bool isOpen)
	Saves the window data to the WindowFrameController.
void	SetFullScreenMode (bool value)
	Toggles the fullscreen mode for the window frame.
void	SetHeaderFade ()
	Updates header visual appearance based on active state.
void	UnregisterCallbacks ()
	Unregisters all event callbacks to prevent memory leaks.
void	UpdateTheme (List< StyleSheet > newTheme, List< StyleSheet > oldTheme)
	Updates the theme stylesheet for the windows in the system.
async void	WaitForIdle ()
	Waits for the window to not be moving for 2 seconds before saving the window data.
VisualElement	WindowFrameContent ()
	Creates the content area of the WindowFrame custom control.
VisualElement	WindowFrameFooter ()
	Generates the Footer portion of a WindowFrame custom control.
VisualElement	WindowFrameHeader ()
	Generates the header portion of a WindowFrame custom control.

Static Private Member Functions
static void	ApplyContentStyles (VisualElement newContentContainer)
	Applies standard content styling to a container element.

Private Attributes
bool	_active = true
	Indicates whether the window is currently active/focused.
bool	_allowLock = true
	Indicates whether the window can be locked.
bool	_allowResize = true
	Indicates whether the window can be resized.
VisualElement	_content
	Content area of the window where main UI elements are placed.
ContextMenuConfig	_contextMenuConfig
	Configuration for the context menu associated with this window.
VisualElement	_footer
	Footer area of the window containing toolbar and resize handle.
VisualElement	_footerToolbar
	Toolbar element in the footer area.
VisualElement	_footerToolbarArea
	Container for the footer toolbar.
bool	_fullScreen
	Indicates whether the window is in fullscreen mode.
VisualElement	_header
	Header area of the window containing title and controls.
float	_lastMoveTime
	Timestamp of the last window move operation.
Vector2	_lastPosition
	Last recorded position of the window for change detection.
Vector2	_lastSize
	Last recorded size of the window for change detection.
bool	_locked
	Indicates whether the window is currently locked.
bool	_lockedFullScreen = false
	Whether fullscreen mode is locked and cannot be changed.
bool	_lockedToStartPosition = false
	Whether the window is locked to its start position.
VisualElement	_lockIndicator = new Button()
	Button indicator for locking/unlocking the window.
float	_minHeight = 50
	Minimum height of the window in pixels.
float	_minWidth = 50
	Minimum width of the window in pixels.
VisualElement	_optionsMenu = new Button()
	Button for opening the options menu.
bool	_origAllowMove
	Original value of the allow move flag before fullscreen.
bool	_origAllowResize
	Original value of the allow resize flag before fullscreen.
float	_origBorderBLRadius
	Original bottom-left border radius value before fullscreen.
float	_origBorderBRRadius
	Original bottom-right border radius value before fullscreen.
float	_origBorderTLRadius
	Original top-left border radius value before fullscreen.
float	_origBorderTRRadius
	Original top-right border radius value before fullscreen.
float	_origHeight
	Original height before fullscreen mode.
float	_origWidth
	Original width before fullscreen mode.
float	_origX
	Original X position before fullscreen mode.
float	_origY
	Original Y position before fullscreen mode.
bool	_overrideStartPosition
	Indicates whether to override the default start position.
string	_parentObjectId
	ID of the parent object associated with the window.
VisualElement	_resizeArea = new VisualElement()
	Area for resizing the window, typically in the bottom-right corner.
Color	_resolvedHeaderBgColor
	The resolved background color for the active header state.
Color	_resolvedHeaderBgColorInactive
	The resolved background color for the inactive header state.
WindowFramePosition	_selectedPosition = WindowFramePosition.TopLeft
	Initial positioning preference for the window.
bool	_showFooter = true
	Indicates whether the footer is visible.
bool	_showHeader = true
	Indicates whether the header is visible.
List< StyleSheet >	_styleSheet
	List of stylesheets applied to the window.
string	_title = "Window Title"
	Title of the window displayed in the header.
Label	_titleLabel = new Label()
	Label displaying the window title in the header.
bool	_waitingForIdle
	Indicates whether the window is waiting for idle state before saving data.

Static Private Attributes
static readonly CustomStyleProperty< Color >	s_CustomColor = new("--windowFrame__header-background-color")
	Custom style property for header background color theming.

Detailed Description

WindowFrame is a comprehensive window system that provides desktop-style window functionality including:

• Complete window lifecycle management (create, show, hide, close)
• Drag-and-drop window movement with boundary constraints
• Resizable windows with configurable size limits
• Fullscreen toggle with state preservation
• Window locking system to prevent accidental modifications
• Persistent window state across sessions
• Multiple instance management
• Theme integration and custom styling support
• Context menu integration
• Tooltip support throughout the interface

// Basic window creation
var window = new WindowFrame
{
    WindowId = "MainWindow",
    Title = "My Application",
    DefaultWidth = 400,
    DefaultHeight = 300,
    WindowMemoryEnabled = true
};

// Add content
var content = new VisualElement();
content.Add(new Label("Hello World"));
window.Content = content;

// Show window
WindowFrameController.AddElement(window);

// Custom window subclass
public class InventoryWindow : WindowFrame
{
    public InventoryWindow()
    {
        WindowId = "Inventory";
        Title = "Player Inventory";
        AllowMultipleInstances = false;
        CreateInventoryInterface();
    }
}

Constructor & Destructor Documentation

WindowFrame()

GWG.WindowFramework.WindowFrame.WindowFrame

(

)

The constructor performs comprehensive initialization including:

• Multiple instance checking (if AllowMultipleInstances is false)
• Editor/runtime visibility configuration
• Basic styling and layout setup
• Event callback registration
• Theme integration and tooltip application

// Basic window creation
var window = new WindowFrame();

// Customized window
var customWindow = new WindowFrame {
    WindowId = "CustomWindow",
    Title = "My Window",
    DefaultWidth = 500,
    DefaultHeight = 400
};

// Specialized subclass
public class InventoryWindow : WindowFrame {
    public InventoryWindow() {
        WindowId = "Inventory";
        Title = "Player Inventory";
        AllowMultipleInstances = false;
        CreateInventoryUI();
    }
}

Member Function Documentation

ApplyContentStyles()

void GWG.WindowFramework.WindowFrame.ApplyContentStyles ( VisualElement newContentContainer )

staticprivate

Parameters

newContentContainer

The container to apply styling to

Configures the container for flexible vertical layout with proper overflow handling. Ensures consistent content area behavior across all windows.

Close()

void GWG.WindowFramework.WindowFrame.Close ( )

private

Handles the full window closure process including:

• Unregistering all event callbacks
• Removing from UI hierarchy
• Saving final state as closed
• Updating WindowFrameController active window state Called internally after permission checks in CloseWindow().

CloseWindow()

void GWG.WindowFramework.WindowFrame.CloseWindow

(

bool

forceAll = false

)

Parameters

forceAll

Forces closure regardless of permissions when true

Respects AllowClose and Locked properties unless forceAll is true. When forceAll is true, overrides all restrictions for emergency shutdown scenarios. Calls the private Close() method to perform actual cleanup.

// Normal close (respects permissions)
window.CloseWindow();

// Force close (ignores all restrictions)
window.CloseWindow(true);

// Close all windows during shutdown
foreach (var win in windows) {
    win.CloseWindow(true);
}

ContextMenuDefaultConfig()

ContextMenuConfig GWG.WindowFramework.WindowFrame.ContextMenuDefaultConfig ( )

private

Returns

ContextMenuConfig with fullscreen, lock, and close options

Provides a standard context menu with common window operations. Each item includes appropriate visibility and enabled logic based on window permissions. Serves as an example for creating custom context menu configurations.

// The default menu includes:
// - Fullscreen (when not fullscreen and allowed)
// - Restore (when fullscreen and not locked)
// - Lock (when not locked and allowed)
// - Unlock (when locked and allowed)
// - Separator
// - Close (when allowed and in play mode)

CreateLayout()

void GWG.WindowFramework.WindowFrame.CreateLayout ( )

private

Establishes the three-part window structure in the correct hierarchical order. Each section is created and configured for its specific purpose.

GeometryChangeCallback()

void GWG.WindowFramework.WindowFrame.GeometryChangeCallback ( GeometryChangedEvent evt )

private

Parameters

evt	The geometry change event data

Handles window geometry changes by tracking position and size changes. Implements idle detection to avoid excessive save operations during continuous movement. Respects LockedToStartPosition setting by resetting position when needed.

HandleMultipleInstanceCheck()

bool GWG.WindowFramework.WindowFrame.HandleMultipleInstanceCheck ( )

private

Returns

True if window should continue initialization, false if it should be destroyed

When AllowMultipleInstances is false, searches for existing instances of the same type. If found, activates the existing instance and marks the new one for destruction. Only performs check during runtime to avoid editor issues.

Hide()

void GWG.WindowFramework.WindowFrame.Hide

(

)

Removes the window from layout calculations while keeping it in the hierarchy. Updates display style and visibility flag for fast show/hide operations. Schedules a save operation to persist the hidden state.

// Hide window temporarily
window.Hide();

// Window becomes:
// - display: none (excluded from layout)
// - visible: false (marked as hidden)
// - Still in hierarchy for fast restoration

KeepOnScreen()

void GWG.WindowFramework.WindowFrame.KeepOnScreen ( )

private

Adjusts window position to prevent it from moving off-screen. Handles all four screen edges and maintains window visibility. Called automatically during positioning operations.

// Called automatically during:
// - Window movement
// - Screen size changes
// - Window positioning operations
// Ensures window stays fully visible

LoadWindowData()

bool GWG.WindowFramework.WindowFrame.LoadWindowData ( )

private

Returns

True if loading completed successfully, false if window should be destroyed

Attempts to restore window state from saved data including position, size, and visibility. Falls back to default positioning if no saved data exists or memory is disabled. Handles multiple instance checking and applies appropriate sizing for fullscreen mode.

// Called automatically during window initialization
// Restores saved position, size, visibility from previous session
// Falls back to StartPosition if no saved data

OnAttachToPanel()

void GWG.WindowFramework.WindowFrame.OnAttachToPanel ( AttachToPanelEvent evt )

private

Parameters

evt	The attach event data

Triggered when the window is added to the UI hierarchy. Fires the OnWindowFrameAdded event for system notification.

OnClickEvent()

void GWG.WindowFramework.WindowFrame.OnClickEvent ( ClickEvent evt )

private

Parameters

evt	The click event data

Sets this window as the active window when clicked (except options menu clicks). Only operates during play mode to avoid editor interference. Uses WindowFrameController to properly manage window activation.

// User clicks anywhere on window
// (except options menu button)
// → Window becomes active/focused
// → Other windows become inactive

OnDetachFromPanel()

void GWG.WindowFramework.WindowFrame.OnDetachFromPanel ( DetachFromPanelEvent evt )

private

Parameters

evt	The detach event data

Triggered when the window is removed from the UI hierarchy. Fires the OnWindowFrameRemoved event and unregisters all callbacks. Essential for notifying other systems and preventing memory leaks.

OnOnScreenSizeChanged()

void GWG.WindowFramework.WindowFrame.OnOnScreenSizeChanged ( GeometryChangedEvent evt )

private

Parameters

evt	The geometry change event from the screen/panel

Responds to screen resolution changes or panel size modifications. Updates window position if LockedToStartPosition is true. Ensures windows remain on screen after size changes.

OnWindowMove()

void GWG.WindowFramework.WindowFrame.OnWindowMove ( )

private

Tracks the last move time and initiates idle detection to batch save operations. Prevents excessive saving during continuous window movement operations.

RegisterCallbacks()

void GWG.WindowFramework.WindowFrame.RegisterCallbacks ( )

private

Sets up comprehensive event handling including:

• Initial geometry setup and data loading
• Ongoing geometry change monitoring
• Window activation/focus handling
• Theme change subscriptions
• Screen size change responses
• Manipulator setup for drag/resize/context menu Uses scheduled execution to ensure proper initialization timing.

// Called automatically during constructor
// Sets up all event handling for:
// - Window movement and resizing
// - Focus and activation
// - Theme changes
// - Context menu and manipulators

SaveWindowData() [1/2]

void GWG.WindowFramework.WindowFrame.SaveWindowData ( )

private

Convenience method that saves window data with current visibility state. Uses the more detailed SaveWindowData(bool) method internally.

SaveWindowData() [2/2]

void GWG.WindowFramework.WindowFrame.SaveWindowData ( bool isOpen )

private

Parameters

isOpen

Whether the window is currently open

Saves comprehensive window state including position, size, visibility, lock state, and other properties. Only saves if WindowMemoryEnabled is true and proper identification is available. Creates a unique data key combining type, parent ID, and window ID.

// Save current state
SaveWindowData(true);  // Window is open

// Save when closing
SaveWindowData(false); // Window is closed

// Data key format: "MyWindowType|ParentId|WindowId"

SetFullScreenMode()

void GWG.WindowFramework.WindowFrame.SetFullScreenMode ( bool value )

private

Parameters

value

A boolean indicating whether to enable or disable fullscreen mode.

Manages fullscreen state by storing original dimensions and settings. Temporarily disables resize and move capabilities in fullscreen mode. Restores original state when exiting fullscreen. Respects AllowFullscreen, Locked, and LockedFullscreen properties.

// Enter fullscreen
SetFullScreenMode(true);
// Stores: original width, height, x, y, allowResize, allowMove
// Sets: 100% width/height, position (0,0), disables resize/move

// Exit fullscreen
SetFullScreenMode(false);
// Restores: original dimensions and settings

SetHeaderFade()

void GWG.WindowFramework.WindowFrame.SetHeaderFade ( )

private

Applies different opacity levels to provide visual feedback about window focus:

• Active windows: Full opacity (1.0)
• Inactive windows: Reduced opacity (0.7) Helps users identify which window currently has focus.

SetOpeningPosition()

void GWG.WindowFramework.WindowFrame.SetOpeningPosition

(

)

Calculates window position based on screen dimensions and window size. Respects LockedToStartPosition and _overrideStartPosition settings. Uses scheduled execution to ensure layout calculations are complete.

// Positions calculated relative to screen:
// TopLeft: (0, 0)
// Center: (screenWidth-windowWidth)/2, (screenHeight-windowHeight)/2
// BottomRight: screenWidth-windowWidth, screenHeight-windowHeight

Show()

void GWG.WindowFramework.WindowFrame.Show

(

)

Makes the window immediately visible and interactive. Updates display style, visibility flag, and opacity. Schedules a save operation to persist the visible state.

// Show window immediately
window.Show();

// Window becomes:
// - display: flex (part of layout)
// - visible: true (marked as visible)
// - opacity: 1.0 (fully opaque)

UnregisterCallbacks()

void GWG.WindowFramework.WindowFrame.UnregisterCallbacks ( )

private

Removes all registered event callbacks including:

• Geometry change callbacks
• Click events
• Panel detach events
• Theme change subscriptions
• Screen size change callbacks Essential for proper cleanup and memory management.

UpdateTheme()

void GWG.WindowFramework.WindowFrame.UpdateTheme ( List< StyleSheet > newTheme, List< StyleSheet > oldTheme )

private

Parameters

newTheme	The new stylesheet to apply
oldTheme	The old stylesheet to remove

Safely replaces old stylesheets with new ones during theme changes. Ensures proper cleanup and prevents style conflicts.

WaitForIdle()

async void GWG.WindowFramework.WindowFrame.WaitForIdle ( )

private

Implements asynchronous idle detection to batch save operations. Waits 1 second of inactivity before saving to avoid excessive file operations. Includes error handling for async operation failures.

// Called automatically after window movement stops
// Waits 1 second of no movement, then saves window data
// Prevents continuous saving during drag operations

WindowFrameContent()

VisualElement GWG.WindowFramework.WindowFrame.WindowFrameContent ( )

private

Returns

VisualElement as the container section of the windowframe

Creates the main content container with appropriate flex layout settings. This is where application content should be placed.

WindowFrameFooter()

VisualElement GWG.WindowFramework.WindowFrame.WindowFrameFooter ( )

private

Returns

VisualElement containing the complete window footer

Creates the footer with toolbar area and resize handle. Configured for proper layout and resize functionality.

WindowFrameHeader()

VisualElement GWG.WindowFramework.WindowFrame.WindowFrameHeader ( )

private

Returns

VisualElement containing the complete window header

Creates the header with title label, lock indicator, and options menu. Configured for dragging and proper event handling.

Member Data Documentation

_active

bool GWG.WindowFramework.WindowFrame._active = true

private

_allowLock

bool GWG.WindowFramework.WindowFrame._allowLock = true

private

_allowResize

bool GWG.WindowFramework.WindowFrame._allowResize = true

private

_content

VisualElement GWG.WindowFramework.WindowFrame._content

private

_contextMenuConfig

ContextMenuConfig GWG.WindowFramework.WindowFrame._contextMenuConfig

private

_footer

VisualElement GWG.WindowFramework.WindowFrame._footer

private

_footerToolbar

VisualElement GWG.WindowFramework.WindowFrame._footerToolbar

private

_footerToolbarArea

VisualElement GWG.WindowFramework.WindowFrame._footerToolbarArea

private

_fullScreen

bool GWG.WindowFramework.WindowFrame._fullScreen

private

_header

VisualElement GWG.WindowFramework.WindowFrame._header

private

_lastMoveTime

float GWG.WindowFramework.WindowFrame._lastMoveTime

private

_lastPosition

Vector2 GWG.WindowFramework.WindowFrame._lastPosition

private

_lastSize

Vector2 GWG.WindowFramework.WindowFrame._lastSize

private

_locked

bool GWG.WindowFramework.WindowFrame._locked

private

_lockedFullScreen

bool GWG.WindowFramework.WindowFrame._lockedFullScreen = false

private

_lockedToStartPosition

bool GWG.WindowFramework.WindowFrame._lockedToStartPosition = false

private

_lockIndicator

VisualElement GWG.WindowFramework.WindowFrame._lockIndicator = new Button()

private

_minHeight

float GWG.WindowFramework.WindowFrame._minHeight = 50

private

_minWidth

float GWG.WindowFramework.WindowFrame._minWidth = 50

private

_optionsMenu

VisualElement GWG.WindowFramework.WindowFrame._optionsMenu = new Button()

private

_origAllowMove

bool GWG.WindowFramework.WindowFrame._origAllowMove

private

_origAllowResize

bool GWG.WindowFramework.WindowFrame._origAllowResize

private

_origBorderBLRadius

float GWG.WindowFramework.WindowFrame._origBorderBLRadius

private

_origBorderBRRadius

float GWG.WindowFramework.WindowFrame._origBorderBRRadius

private

_origBorderTLRadius

float GWG.WindowFramework.WindowFrame._origBorderTLRadius

private

_origBorderTRRadius

float GWG.WindowFramework.WindowFrame._origBorderTRRadius

private

_origHeight

float GWG.WindowFramework.WindowFrame._origHeight

private

_origWidth

float GWG.WindowFramework.WindowFrame._origWidth

private

_origX

float GWG.WindowFramework.WindowFrame._origX

private

_origY

float GWG.WindowFramework.WindowFrame._origY

private

_overrideStartPosition

bool GWG.WindowFramework.WindowFrame._overrideStartPosition

private

_parentObjectId

string GWG.WindowFramework.WindowFrame._parentObjectId

private

_resizeArea

VisualElement GWG.WindowFramework.WindowFrame._resizeArea = new VisualElement()

private

_resolvedHeaderBgColor

Color GWG.WindowFramework.WindowFrame._resolvedHeaderBgColor

private

_resolvedHeaderBgColorInactive

Color GWG.WindowFramework.WindowFrame._resolvedHeaderBgColorInactive

private

_selectedPosition

WindowFramePosition GWG.WindowFramework.WindowFrame._selectedPosition = WindowFramePosition.TopLeft

private

_showFooter

bool GWG.WindowFramework.WindowFrame._showFooter = true

private

_showHeader

bool GWG.WindowFramework.WindowFrame._showHeader = true

private

_styleSheet

List<StyleSheet> GWG.WindowFramework.WindowFrame._styleSheet

private

_title

string GWG.WindowFramework.WindowFrame._title = "Window Title"

private

_titleLabel

Label GWG.WindowFramework.WindowFrame._titleLabel = new Label()

private

_waitingForIdle

bool GWG.WindowFramework.WindowFrame._waitingForIdle

private

s_CustomColor

readonly CustomStyleProperty<Color> GWG.WindowFramework.WindowFrame.s_CustomColor = new("--windowFrame__header-background-color")

staticprivate

Property Documentation

Active

bool GWG.WindowFramework.WindowFrame.Active

getset

Active state affects visual appearance (inactive windows appear dimmed). Only one window should be active at a time. Managed by WindowFrameController.

// Check if window is active
if (window.Active) {
    Debug.Log("Window has focus");
}

// Set active through controller (recommended)
WindowFrameController.Instance.SetActiveWindow(window);

AllowClose

bool GWG.WindowFramework.WindowFrame.AllowClose = true

getset

When disabled, users cannot close the window through normal means. Can still be closed programmatically with CloseWindow(true).

// Essential system window
systemWindow.AllowClose = false;

// Conditional closing
documentWindow.AllowClose = !hasUnsavedChanges;

AllowFullscreen

bool GWG.WindowFramework.WindowFrame.AllowFullscreen = true

getset

When disabled, users cannot toggle fullscreen through context menu or double-click. The Fullscreen property can still be set programmatically if needed.

// Main window with fullscreen support
mainWindow.AllowFullscreen = true;

// Small utility without fullscreen
toolPalette.AllowFullscreen = false;

AllowLock

bool GWG.WindowFramework.WindowFrame.AllowLock

getset

When enabled, users can lock/unlock through context menu or lock indicator. Locked windows cannot be moved, resized, or closed by normal interactions.

// Window that can be locked
importantWindow.AllowLock = true;

// Window where locking isn't needed
temporaryWindow.AllowLock = false;

AllowMove

bool GWG.WindowFramework.WindowFrame.AllowMove = true

getset

When enabled, users can drag the header to reposition the window. Movement is constrained to keep window within screen bounds. Automatically disabled when locked or in fullscreen mode.

// Fixed-position status window
statusWindow.AllowMove = false;
statusWindow.LockedToStartPosition = true;

// Moveable dialog
dialogWindow.AllowMove = true;

AllowMultipleInstances

bool GWG.WindowFramework.WindowFrame.AllowMultipleInstances = true

getset

When false, creating a new instance will activate the existing one instead. Useful for singleton windows like settings or main inventory.

// Only one settings window
settingsWindow.AllowMultipleInstances = false;

// Multiple chat windows allowed
chatWindow.AllowMultipleInstances = true;

AllowResize

bool GWG.WindowFramework.WindowFrame.AllowResize

getset

When enabled, users can drag the resize handle to change dimensions. Subject to MinWidth/MinHeight constraints and disabled when locked.

// Fixed-size dialog
alertWindow.AllowResize = false;

// Resizable main window
mainWindow.AllowResize = true;
mainWindow.MinWidth = 400;
mainWindow.MinHeight = 300;

Content

VisualElement GWG.WindowFramework.WindowFrame.Content

getset

The main container where application UI elements should be placed. When set, existing content is removed and tooltips are automatically applied. This is where forms, data displays, and interactive controls go.

// Simple content
var content = new VisualElement();
content.Add(new Label("Welcome"));
content.Add(new Button("Start"));
window.Content = content;

// Complex content with layout
var complexContent = new VisualElement();
complexContent.Add(CreateHeaderSection());
complexContent.Add(CreateDataSection());
complexContent.Add(CreateButtonSection());
window.Content = complexContent;

contentContainer

override VisualElement GWG.WindowFramework.WindowFrame.contentContainer

get

This ensures that elements added directly to the WindowFrame are placed in the content area rather than the root, maintaining the window's internal structure while providing intuitive behavior.

// These automatically go to content area:
window.Add(new Label("Hello"));
window.hierarchy.Add(new Button("Click"));

// Equivalent to:
window.Content.Add(new Label("Hello"));

ContextMenuConfig

ContextMenuConfig GWG.WindowFramework.WindowFrame.ContextMenuConfig

getset

If no custom configuration is provided, a default context menu is generated with standard window operations (fullscreen, lock, close). Custom configurations can add application-specific options.

// Custom context menu
var config = new ContextMenuConfig {
    Title = "Window Options",
    Items = new List<ContextMenuItem> {
        new ContextMenuItem("Save Layout", SaveLayout),
        new ContextMenuItem("Reset", ResetWindow),
        new ContextMenuItem(), // Separator
        new ContextMenuItem("Close", CloseWindow)
    }
};
window.ContextMenuConfig = config;

DefaultHeight

float GWG.WindowFramework.WindowFrame.DefaultHeight = 300

getset

Used when the window is first created or when no saved size data is available. Provides the initial height for new window instances.

// Portrait window
inventoryWindow.DefaultHeight = 400;
inventoryWindow.DefaultWidth = 300;

// Landscape window
timelineWindow.DefaultHeight = 200;
timelineWindow.DefaultWidth = 600;

DefaultWidth

float GWG.WindowFramework.WindowFrame.DefaultWidth = 300

getset

Used when the window is first created or when no saved size data is available. Provides the initial width for new window instances.

// Different defaults for different window types
settingsWindow.DefaultWidth = 400;
chatWindow.DefaultWidth = 350;
mainWindow.DefaultWidth = 800;

FooterToolbar

VisualElement GWG.WindowFramework.WindowFrame.FooterToolbar

getset

Provides a dedicated area for action buttons and controls at the bottom of the window. Positioned to the left of the resize handle. Setting to null removes toolbar content.

// Simple button toolbar
var toolbar = new VisualElement();
toolbar.style.flexDirection = FlexDirection.Row;
toolbar.Add(new Button("Save"));
toolbar.Add(new Button("Cancel"));
window.FooterToolbar = toolbar;

// Status and actions
var statusToolbar = new VisualElement();
statusToolbar.Add(new Label("Ready"));
statusToolbar.Add(CreateActionButtons());
window.FooterToolbar = statusToolbar;

Fullscreen

bool GWG.WindowFramework.WindowFrame.Fullscreen

getset

Fullscreen mode expands the window to fill the entire screen and temporarily disables movement and resizing. Original dimensions are preserved for restoration.

// Toggle fullscreen
window.Fullscreen = !window.Fullscreen;

// Start in fullscreen
mediaWindow.Fullscreen = true;

Locked

bool GWG.WindowFramework.WindowFrame.Locked

getset

When locked, the window cannot be moved, resized, or closed through normal means. Displays lock indicator and adds appropriate CSS classes for styling. Only available if AllowLock is true.

// Lock window programmatically
window.Locked = true;

// Toggle lock state
window.Locked = !window.Locked;

// Check before operations
if (!window.Locked) {
    // Can perform operation
}

LockedFullscreen

bool GWG.WindowFramework.WindowFrame.LockedFullscreen

getset

When true, forces the window into fullscreen mode and prevents users from exiting. Creates a kiosk-style interface where the window permanently occupies the screen.

// Kiosk mode application
kioskWindow.LockedFullscreen = true;

// Presentation mode
presentationWindow.LockedFullscreen = presentationMode;

LockedToStartPosition

bool GWG.WindowFramework.WindowFrame.LockedToStartPosition

getset

When true, the window will always return to its StartPosition and ignore saved position data. Useful for windows that should maintain consistent positioning.

// System window that stays in top-left
systemWindow.LockedToStartPosition = true;
systemWindow.StartPosition = WindowFramePosition.TopLeft;

MinHeight

float GWG.WindowFramework.WindowFrame.MinHeight

getset

Enforces a lower bound on window resizing to ensure usability. Should account for header, content area, and footer visibility.

// Standard minimum
window.MinHeight = 100;

// Dynamic based on components
float minHeight = (ShowHeader ? 30 : 0) +
                  (ShowFooter ? 25 : 0) +
                  100; // content minimum
window.MinHeight = minHeight;

MinWidth

float GWG.WindowFramework.WindowFrame.MinWidth

getset

Enforces a lower bound on window resizing to ensure usability. Applied through both CSS styling and drag-resize operations.

// Set reasonable minimums
window.MinWidth = 200;  // Enough for buttons
window.MinHeight = 150; // Header + content

// Content-based minimum
window.MinWidth = CalculateMinimumContentWidth();

OptionsMenuTooltip

string GWG.WindowFramework.WindowFrame.OptionsMenuTooltip

getset

Supports positioning hints using format "Position:Text" where Position can be T, B, L, or R. Provides users with information about the options menu functionality.

// Default tooltip
window.OptionsMenuTooltip = "B:Open window options";

// Custom tooltip
window.OptionsMenuTooltip = "T:Advanced settings";

ParentObjectId

string GWG.WindowFramework.WindowFrame.ParentObjectId

getset

ParentObjectId allows windows to be associated with specific game objects or contexts. This enables multiple windows of the same type to maintain separate state data.

// Associate with specific container
chestWindow.ParentObjectId = "Chest_001";

// Associate with NPC
shopWindow.ParentObjectId = "Merchant_Village";

ResizeAreaTooltip

string GWG.WindowFramework.WindowFrame.ResizeAreaTooltip

getset

Supports positioning hints using format "Position:Text" where Position can be T, B, L, or R. Provides users with instructions for resizing the window.

// Standard resize tooltip
window.ResizeAreaTooltip = "B:Drag to resize";

// Custom instructions
window.ResizeAreaTooltip = "T:Click and drag corner to change size";

ShowFooter

bool GWG.WindowFramework.WindowFrame.ShowFooter

getset

The footer contains toolbar area and resize handle. Hiding it removes resize functionality unless handled elsewhere.

// Simple dialog without footer
dialogWindow.ShowFooter = false;
dialogWindow.AllowResize = false;

// Compact mode
window.ShowFooter = !compactMode;

ShowHeader

bool GWG.WindowFramework.WindowFrame.ShowHeader

getset

The header contains title, options menu, and lock indicator. Hiding it removes the drag handle, so ensure alternative movement methods if needed.

// Borderless window
window.ShowHeader = false;
window.ShowFooter = false;

// Toggle header for fullscreen
window.ShowHeader = !isFullscreenMode;

StartPosition

WindowFramePosition GWG.WindowFramework.WindowFrame.StartPosition

getset

Determines where the window will initially appear on screen. Can be overridden by saved window data if WindowMemoryEnabled is true.

// Center window on screen
window.StartPosition = WindowFramePosition.Center;

// Position in top-left
debugWindow.StartPosition = WindowFramePosition.TopLeft;

StyleSheet

List<StyleSheet> GWG.WindowFramework.WindowFrame.StyleSheet

getset

Allows individual windows to have custom styling beyond the global theme. Stylesheets are applied immediately and replace existing window-specific styles. Falls back to global theme on loading failure.

// Custom window styling
window.StyleSheet = new List<StyleSheet> {
    Resources.Load<StyleSheet>("CustomTheme"),
    Resources.Load<StyleSheet>("WindowEffects")
};

// Error window with special styling
errorWindow.StyleSheet = new List<StyleSheet> {
    Resources.Load<StyleSheet>("ErrorStyle")
};

Title

string GWG.WindowFramework.WindowFrame.Title

getset

The title is displayed in the window header and can be changed dynamically. Changes immediately update the visual title label.

// Static title
window.Title = "My Application";

// Dynamic title
window.Title = $"Document - {fileName}";

// Status in title
window.Title = $"Chat - {channelName} ({userCount} users)";

WindowId

string GWG.WindowFramework.WindowFrame.WindowId

getset

The WindowId is used for persistence and should be unique within the application. It's combined with ParentObjectId to create unique save keys.

// Static ID for singleton windows
window.WindowId = "MainInventory";

// Dynamic ID for multiple instances
window.WindowId = $"ItemDetail_{itemId}";

WindowMemoryEnabled

bool GWG.WindowFramework.WindowFrame.WindowMemoryEnabled = false

getset

When enabled, window position, size, and state are automatically saved and restored. Requires both this property and WindowFrameController.MemoryEnabled to be true.

// Enable persistence for user windows
inventoryWindow.WindowMemoryEnabled = true;

// Disable for temporary dialogs
alertDialog.WindowMemoryEnabled = false;

Event Documentation

OnWindowFrameAdded

Action<WindowFrame> GWG.WindowFramework.WindowFrame.OnWindowFrameAdded

static

This static event allows other systems to respond to window creation for registration, initialization, or UI management purposes.

WindowFrame.OnWindowFrameAdded += (window) => {
    Debug.Log($"Window added: {window.Title}");
    RegisterWindow(window);
};

OnWindowFrameRemoved

Action<WindowFrame> GWG.WindowFramework.WindowFrame.OnWindowFrameRemoved

static

This static event allows other systems to respond to window removal for cleanup, deregistration, or UI management purposes.

WindowFrame.OnWindowFrameRemoved += (window) => {
    Debug.Log($"Window removed: {window.Title}");
    UnregisterWindow(window);
};
